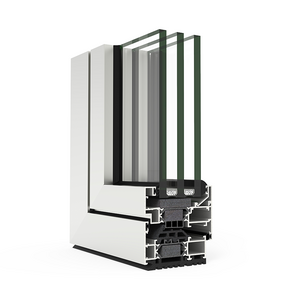

This 70 mm frame depth hinged system offers great thermal and acoustic performance combined with very simple fabrication, which is why it has become one of the most demanded series for aluminum windows, doors and balconies.
System geometry
Depth: 2.7''
Visible height: 34''
Center node: 55''
Dim.Max.Sash: L63''/H102''
Max./sash: 353 lbs
Maximum glazing thickness
1.25''
Acoustic performance
42 dB
Thermal performance
UW ≥ 1,43 W / m2k
Available in almost 800 different colours and textures, including imitations of wood and anodising.
Air resistance (UNE-EN 12207: 2000): Class 4
Water resistance (UNE-EN 12208: 2000): Class E1200
Wind resistance (UNE-EN 12210: 2000): Class C5
Sample size tested 2,52 × 1,47 m, 1 sash
The system allows simple and oscillating openings, with European channel hardware.
