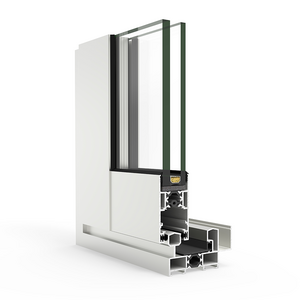

Cortizo 80 is a carpentry system with exceptional thermal performance that recommends it for passive constructions, with a modern design and very generous maximum manufacturing dimensions.
System geometry
Depth: 3''
Visible height: 5.66''
Central node: 7.65''
Dim. max. sash: L71'' / H118''
Max weight sash: 352 lbs
Maximum glazing thickness
2.51''
Acoustic performance
42 dB
Thermal performance
UW ≥ 0,08 W / m2K
Available in almost 800 different colors and textures, including imitations of wood and anodizing.
Air resistance (UNE-EN 12207: 2000): Class 4
Water resistance (UNE-EN 12208: 2000): Class E1950
Wind resistance (UNE-EN 12210: 2000): Class C5
Sample size tested 1,23 × 1,48 m, 2 frames
CE
qualanod
Qualicoat Seaside
Quality
Qualimarine
CSTB
Passive house
The system allows simple and oscillating openings, with European channel hardware.
